Teltonika TRB256 Industrial NB-IoT Gateway

Product description

The TRB256 is an industrial 4G LTE NB-IoT gateway designed to be applied to a broad range of IoT solutions.
The device is equipped with multiple WAN interfaces, such as I/Os, RS232, RS485, and an Ethernet port, additionally
boasting dual SIM functionality for continuous connectivity.
This industrial-grade gateway also supports the 450 MHz frequency band, offering superior LTE signal penetration compared
to standard frequencies, making it an optimal choice for a diverse range of M2M applications.

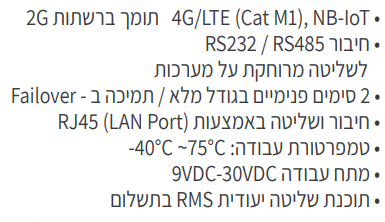

Key Features

• CONNECTIVITY - 4G/LTE Cat M1/Cat NB1and NB2/EGPRS
• 450 MHZ BAND - Greater LTE signal penetration and increased connectivity coverage
• DUAL SIM - Auto-failover, backup WAN and more switching scenarios
• INTERFACES - Ethernet, I/Os, and Serial (RS232, RS485) interfaces with 16-pin terminal block

Package Contents

• Device
• 16-pin terminal block
• 1 x hex key
• QSG (Quick Start Guide)




  Technical parameters

  Wireless features

  Wireless frequency : LTE, GNSS

  Connectors and Interfaces

  RF connectors : (2) SMA female

  LAN speed : (1) 10/100Mbps

  Serial port : RS-232, RS-485

  SIM slot : Yes

  SIM slots quantity : 2

  GPS modul : Yes

  Power

  Power type : DC terminal

  Max. power consumption [W] : 3,5

  Power via connector/terminal : 9 .. 30V DC

  Physical characteristics

  Buttons : Reset

  Operating temperature [°C] : -40 up to 75

  Weight [g] : 165

  Width [mm] : 83

  Height [mm] : 25

  Depth [mm] : 74

  Hardware

  CPU : Mediatek, 580 Mhz, MIPS 24KEc

  CPU frequency [MHz] : 580

  Internal storage [MB] : 128

  RAM [MB] : 16

  Software

  Operating system : RutOS (OpenWrt based Linux OS)

  Default IP address : 192.168.2.1

  Default login and password : admin / (preset password, see label/engraving)
